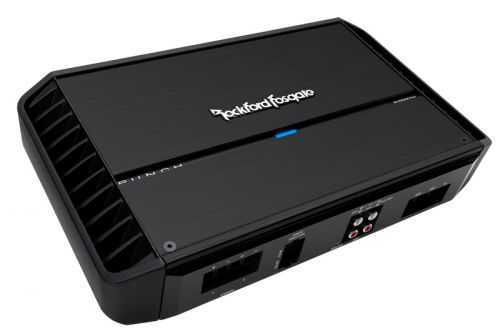

Rockford Fosgate P1000X1bd - Punch 1,000 Watt Class-bd Mono Amplifier
1 of 4

Rockford Fosgate P1000X1bd - Punch 1,000 Watt Class-bd Mono Amplifier

The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers.

  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • RCA pass-thru outputs
  • On-board Punch EQ with +18dB boost @ 45Hz.
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
  • 1 Year Standard Warranty
  • Get a 1 Year Extended Warranty


CEA-2006 Compliant
CEA-2006 Power Rating
300W x 1 @ 4Ω
≤1.0% THD+N

Number of Channels: 1

Rated Power (RMS Continuous Power):
300 Watts x 1 @ 4-Ohm
500 Watts x 1 @ 2-Ohm
1000 Watts x 1 @ 1-Ohm

Total Power
(Sum of Rated Power): 1000 Watts
Dynamic Power (PVC/PowerCube®):
491 Watts x 1 @ 4-Ohms
874 Watts x 1 @ 2-Ohms
1,430 Watts x 1 @ 1-Ohm

Bridgeable: No

Frequency Response: 20Hz to 250Hz +/- 1.0dB

Efficiency (average): 86% @ 4-Ohm

Total Harmonic Distortion (THD+Noise):
4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%

Crossover Controls:
Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth
All-Pass: No

Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz

Input Sensitivity: 150 mV - 12 V

Signal Input: Hi/Low level: 1 RCA pair

Signal Output: Hi/Low level: 1 RCA pair

Power Input Connector: Captive C-Clamp

Power Wire Gauge: 4 AWG

Speaker Output Connector: Captive C-Clamp

Speaker Wire Gauge: 8 AWG to 18 AWG

Heat Sink Type: Cast aluminum

Cooling: Convection

Remote Controls: Optional Punch Level Control (PLC2) Ready

Visual Indicators:
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD

Circuit Topology Class: Class-BD

Operating Voltage: 9 - 16 VDC

Recommended Fuse (not included): 140 A

Max. Current Draw (13.8V Sinewave): 130 A

Average Current Draw (13.8V Music): 65 A

Suggested Alternator: 100 A

Shipping Weight: 12.9 Lbs. (5.85 Kg.)

Dimensions (H x W x D):
2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)

List Price: $599.00
Price: $480.00
